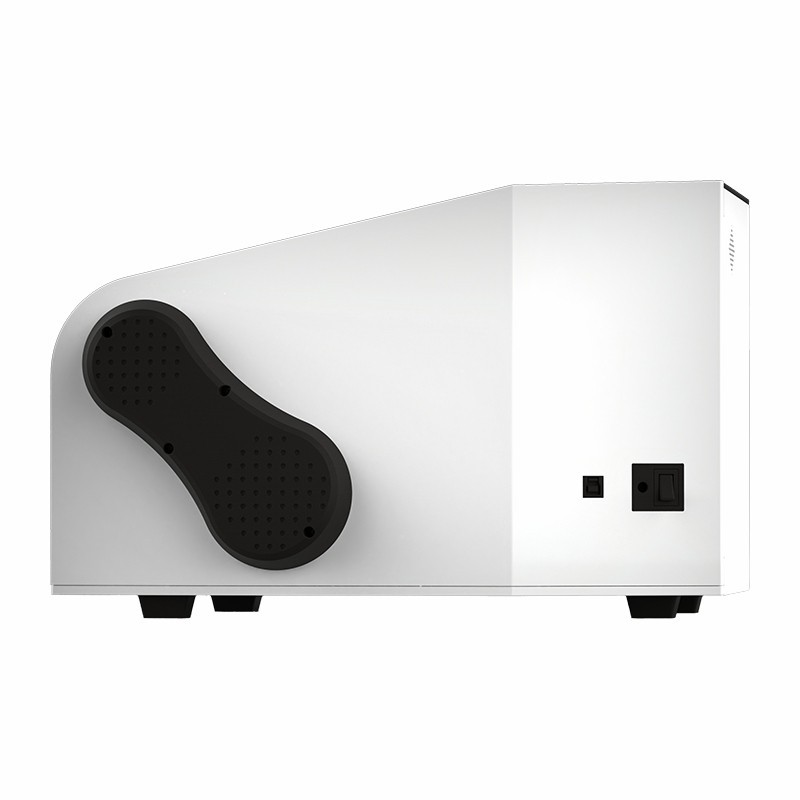

AI-S3 Dental Model Scanner – 50% Faster Scans for Batch Cases
When dental labs take on batch orders, scanning speed becomes the "productivity ceiling". Even if a single arch takes over 10 seconds to scan, only a few batches can be completed in a whole morning. The AI-S3 Dental Model Scanner boosts efficiency by a full 50%: it scans a single arch in 8.5 seconds and an impression in 15 seconds, handling stacks of batch models in one go without keeping subsequent procedures waiting.
Core strengths
50% Higher Efficiency, No Bottlenecks for Batch OrdersIt takes as little as 8.5 seconds to scan a single arch and 15 seconds for an impression, nearly 50% faster than ordinary scanners. You can scan 3–4 more batches of models in one morning, cutting the delivery cycle of batch restorations by one-third.
AI Screw Channel Sealing, More Accurate Implant DataEquipped with built-in AI screw channel sealing technology, it automatically seals the gaps of screw channels when scanning implant models. There is no need for manual data supplementation, resulting in higher design precision for implant abutments.
No Post-Processing After Scanning, Direct CAD ImportScanned data requires no modification or supplementation, and can be directly imported into CAD software such as exocad and 3Shape. This saves 30 minutes of post-processing time, allowing technicians to focus their efforts on design work.
One-Click True-Color Texture Switch, Reference for Aesthetic DetailsSwitch to true-color mode with one click to capture the color and texture of the model. When performing anterior tooth aesthetic restorations, color matching and texture transition are more consistent with the patient's natural teeth, eliminating the need for repeated adjustments.
Application scenarios
Batch crown/bridge model scanning in dental labs
Screw channel data collection for implant models
True-color model scanning for aesthetic restorations
Project Parameters
| Size | 393mm * 271mm * 264mm |
| Scanning time | 1s (occlusion); 8.5s (single arch); 15s (impression); 12s (1–4 units crown) |
| Weight | 4kg |
| Camera | 2*2.4MP |
| Power | DC 24V |
| Texture | True color scan |
| Accuracy | ±0.006mm(ISO12836) |
FAQ
Q: Will scanning accuracy decrease with the increased speed?
A: Not at all. The AI-S3 maintains a stable accuracy of ±0.006mm. The speed improvement is achieved through algorithm optimization rather than sacrificing details, ensuring clear edges and proximal surfaces for batch-scanned models.
Q: With a weight of 4kg, is it easy to move around?
A: Extremely easy. It is lightweight enough to carry between different lab workstations. When handling batch orders that require multi-station processing, it does not need to be fixed in one place, offering great flexibility.
