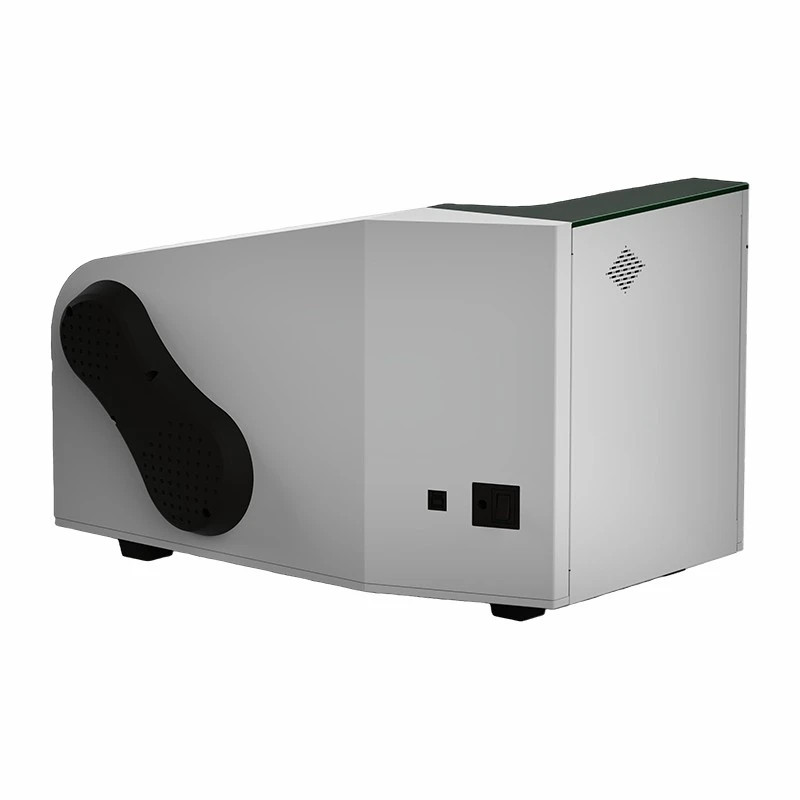

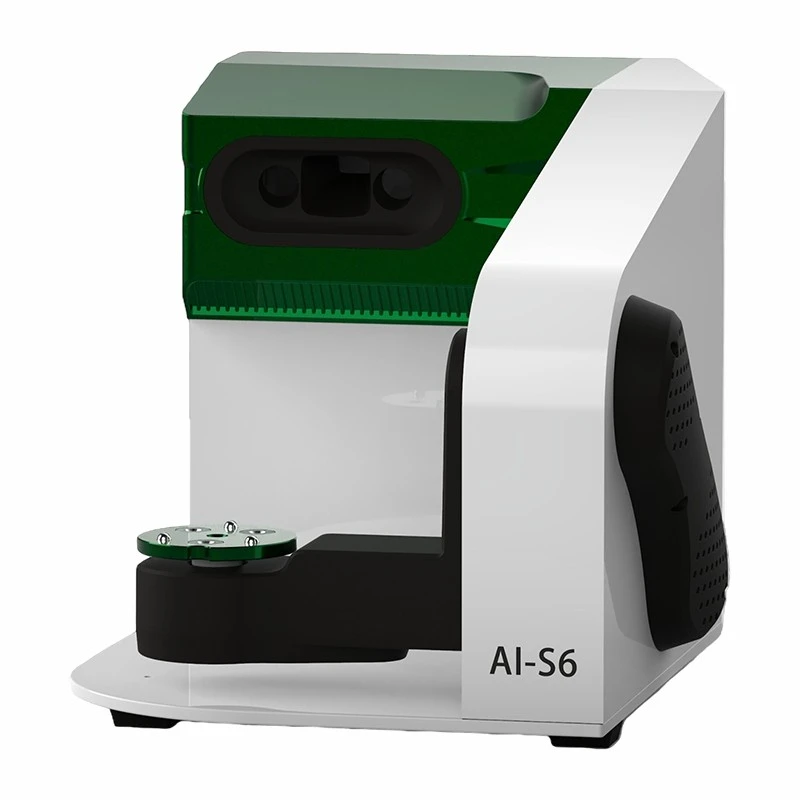

Lab Scanner Dental – AI-S6: No-Fuss Scans for Busy Dental Laboratories
For technicians, the scanning station is often the most frustrating part of the workflow - adjusting parameters, adding missing details, fixing data, and sometimes only a few models get scanned in half a day.
The Aident AI-S6 Lab Scanner Dental is designed as a true "worry-free" model:
- No post-processing needed
- Intelligent automatic rescanning
- One-click true color
- Large scan range for full-arch models in one setup
Technicians can sit down, scan, and hand over clean data immediately - without tiring themselves in the scanning process.
Core Strengths of the AI-S6 Lab Scanner Dental
No Post-Processing – Scan and Use Immediately
1 second for bite registration, 13 seconds for a single jaw, 29 seconds for an impression. Scanned data requires no trimming or filling and can be imported directly into CAD software. Handle two additional batches in a morning without the design process waiting for scanning.
Intelligent Rescanning – No Worries About Narrow Gaps
When the scanner encounters narrow gaps or deep grooves, it automatically recognizes and rescans them. No need to manually adjust angles or perform repeated scans. Even fine edges of wax-ups are captured clearly.
Large Scan Range – Full-Arch Models in One Go
Industry-leading large scan range means full-arch models can be scanned in a single setup. No need to split models, assemble parts or merge data. Full-arch restoration scan efficiency can increase by up to 40%.
True-Color Texture with One-Click Adjustment
True-color texture of the model is captured with a single click - no extra color adjustment required. For aesthetic restorations, color matching and texture transitions align more closely with the patient's natural teeth, reducing reliance on experience-based color guessing.
Ideal Application Scenarios
- Full-mouth and partial model scanning in the dental laboratory
- Digital conversion of wax-ups and impressions
- True-color data acquisition for aesthetic restorations
- Busy labs that need simple, reliable and high-throughput scanning
- Workflows where reducing technician fatigue and data cleanup time is critical
How the AI-S6 Simplifies Daily Laboratory Scanning
Traditional scanners often force technicians to spend extra time on parameter adjustment, gap filling and data repair. The AI-S6 removes these steps:
- Place the model, wax-up or impression
- Start scanning - intelligent rescanning handles narrow gaps automatically
- Capture true-color texture with one click if needed
- Export clean data directly to CAD
Result: higher daily throughput, less technician fatigue, fewer errors and faster hand-over to the design stage.
Technical Parameters – AI-S6 Lab Scanner Dental
| Parameter | Specification |
|---|---|
| Model | AI-S6 |
| Cameras | Dual 3.0 MP |
| Accuracy | ±0.005 mm (ISO 12836) |
| Scanning Time | 1 second (bite) / 13 seconds (single jaw) / 29 seconds (impression) |
| Size | 393 × 271 × 264 mm |
| Weight | 6 kg |
| Texture | True color scan |
| Power | DC 24V |
| Best For | Everyday laboratory scanning with maximum simplicity |
FAQ
Q: If we scan a full-mouth model in one go, is the data stitching accurate?
A: Yes. With the device's large scanning range and intelligent stitching algorithm, the stitching error for a full-mouth model scanned in one setup stays within 0.005 mm - the same accuracy as segmented scanning, while saving significant time.
Q: Can the software integrate with our existing CAD software?
A: Yes. It supports mainstream open formats such as STL, PLY and OBJ, and can be imported directly into exocad, 3Shape and other major CAD platforms without format conversion.
Q: Does the AI-S6 really require no post-processing?
A: Correct. Scanned data needs no edge trimming or gap filling and can go straight into CAD software, allowing design work to begin immediately.
Q: How does intelligent rescanning work?
A: The scanner automatically detects narrow gaps or deep grooves and performs additional scans as needed, eliminating the need for manual angle adjustments or repeated full scans.
Q: Is one-click true color useful for aesthetic cases?
A: Yes. It captures realistic model color and texture instantly, making color matching and texture transitions for anterior restorations more natural and predictable.
Q: What is the accuracy of the AI-S6?
A: ±0.005 mm (ISO 12836), ensuring reliable results for everyday laboratory work.
Why Choose Aident for Your Lab Scanner Dental
Shenzhen Aident Technology Co., Ltd. is a professional manufacturer specializing in dental digital solutions, including lab scanners, intraoral scanners, 3D printers and related consumables.
We focus on creating practical, technician-friendly tools that reduce daily workload while maintaining high accuracy. Contact us today for a worry-free laboratory scanning solution with full OEM/ODM support.
